Migrate Lotus Notes to Shareflex QMS with SQL and PnP PowerShell

Lotus Notes to Shareflex QMS, via SQL using PNP Powershell

This blog post shows how to migrate Lotus Notes database content to its final destination: a SharePoint Shareflex application (in this example, Shareflex QMS). Your Notes database and Shareflex setup will differ, so some adjustments are required, but this guide will get you started.

Lift and shift the IBM Notes content to SQL

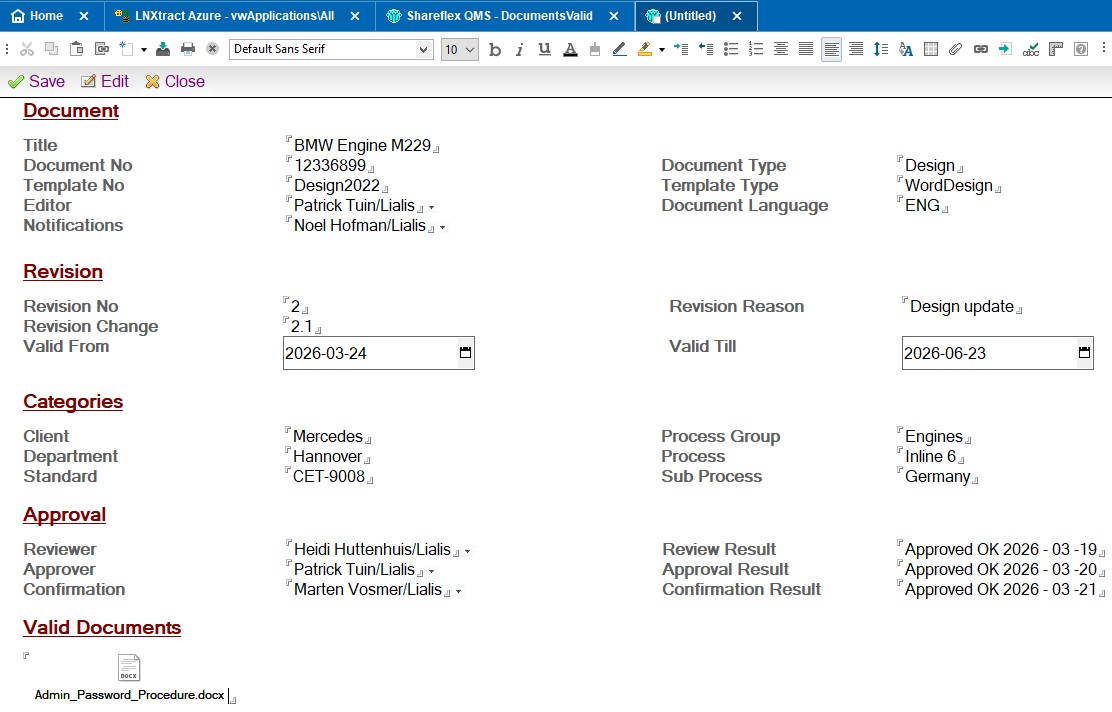

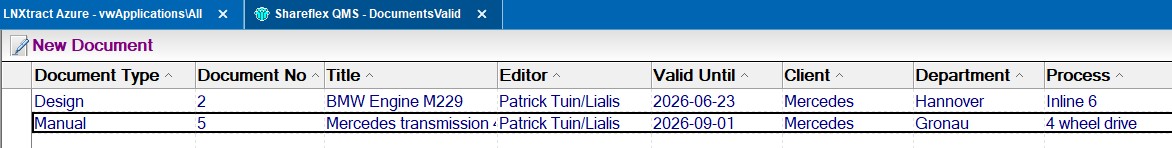

For this blog post, we created a small proof-of-concept (PoC) Lotus Notes application to hold the sample data. The app is not from a real customer project, but specifically built to demonstrate the migration approach in a clear and controlled way. The screenshots below show the structure and example content used in this PoC.

First, the Notes database is migrated to SQL using the Lialis LNExtract tool. LNExtract performs a lift-and-shift migration of the Notes content to SQL, including all documents, all fields, and all rich text content. After the initial migration, daily changes in the Notes database can also be migrated automatically to SQL, keeping SQL in sync with Notes during the transition period.

Transform SQL content into Shareflex QMS documents

Once the Notes content is available in SQL, the next step becomes much easier. From SQL, the data can be migrated into the Shareflex QMS structure on SharePoint Online.

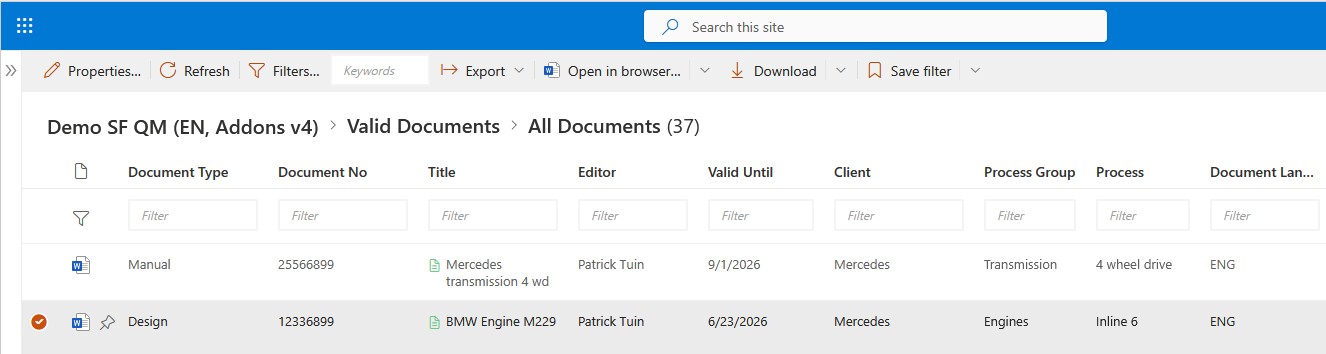

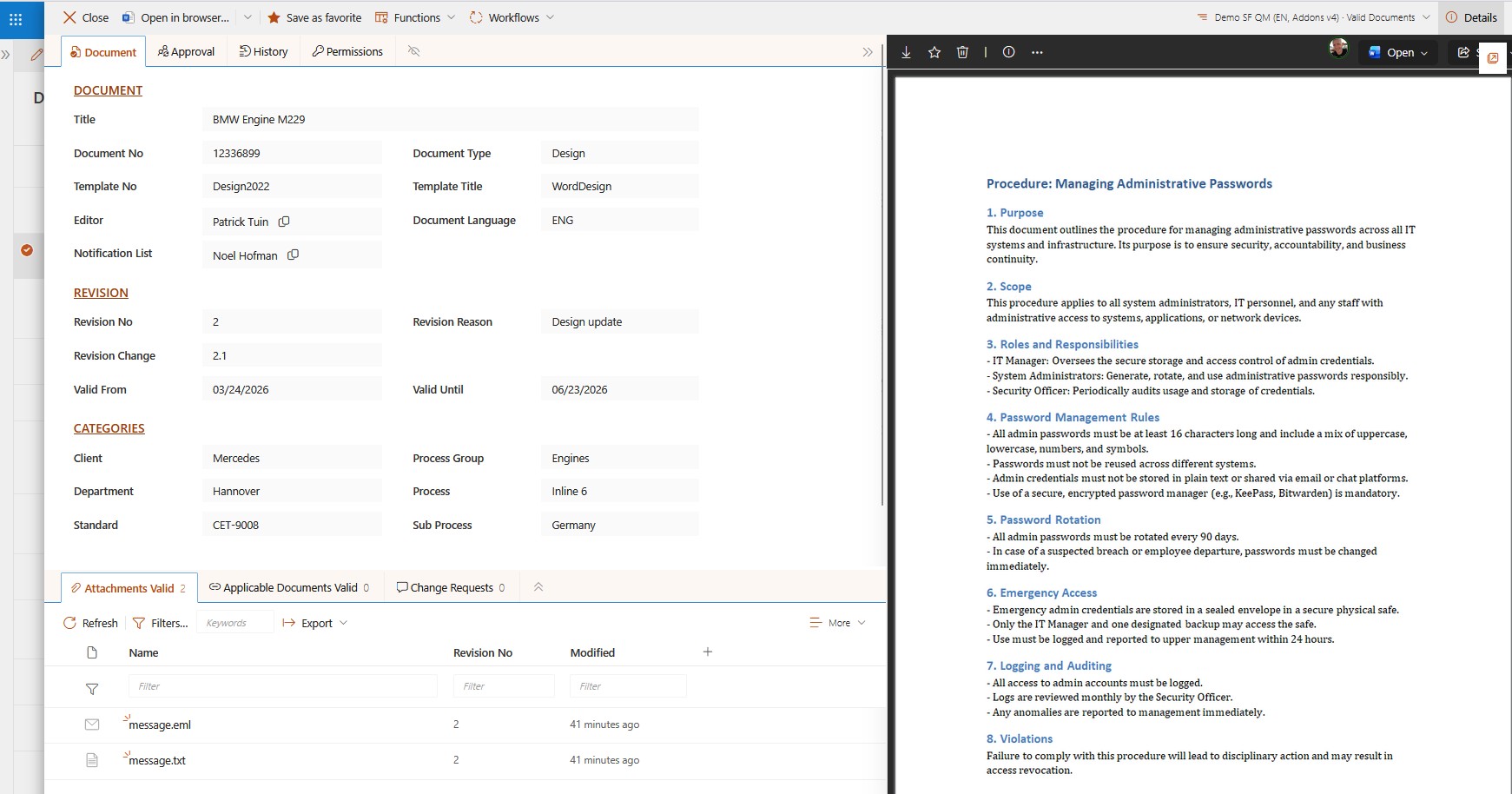

The images below show the Notes document above after it was migrated to Shareflex QMS.

Azure AD application

Before we can run the PnP PowerShell migration, we first need to register an Azure AD application for authentication. This app is used by the script to securely connect to SharePoint Online and perform the migration without using interactive user credentials.

In this example, we create the app using PnP PowerShell:

Register-PnPAzureADApp -ApplicationName “Lialis SPO Notes Migration Tool 1” -Tenant lialis.com -OutPath c:\temp -CertificatePassword (ConvertTo-SecureString -String “pipelinerpassword” -AsPlainText -Force) -devicelogin

1	Register-PnPAzureADApp -ApplicationName “Lialis SPO Notes Migration Tool 1” -Tenant lialis.com -OutPath c:\temp -CertificatePassword (ConvertTo-SecureString -String “pipelinerpassword” -AsPlainText -Force) -devicelogin

PnP PowerShell script we used

The script connects to the SQL table, reads the first entry, exports the attachments from MIME using MimeKit, and creates the items in SharePoint so they are presented properly in the Shareflex interface.

#text file logging on users PC ****************************************************
$LogFolder = "E:\NotesSQLShareflex\Logs"
if (!(Test-Path $LogFolder)) {
New-Item -ItemType Directory -Path $LogFolder | Out-Null
}
$LogDateTime = Get-Date -Format "yyyy-MM-dd_HH-mm-ss"
$LogFile = Join-Path $LogFolder "sqltoshareflex_$LogDateTime.txt"
New-Item -ItemType File -Path $LogFile -Force | Out-Null
function Write-Log {
param(
[string]$Message
)
$LogLine = "$(Get-Date -Format 'yyyy-MM-dd HH:mm:ss') - $Message"
Add-Content -Path $LogFile -Value $LogLine
Write-Host $LogLine
}

# Gets a text value from a SQL row by column name, trims spaces, removes surrounding quotes, and returns $null when empty
function Get-SQLStringValue {
param(
[System.Data.DataRow]$Row,
[string]$ColumnName
)

if (-not $Row.Table.Columns.Contains($ColumnName)) { return $null }
if ($null -eq $Row[$ColumnName]) { return $null }

$v = $Row[$ColumnName].ToString().Trim()
if ([string]::IsNullOrWhiteSpace($v)) { return $null }

while ($v.StartsWith('"') -and $v.EndsWith('"') -and $v.Length -ge 2) {
$v = $v.Substring(1, $v.Length - 2).Trim()
}

if ([string]::IsNullOrWhiteSpace($v)) { return $null }

return $v
}

# Gets a date value from a SQL row by column name, trims spaces, removes surrounding quotes, converts it to datetime, and returns $null when conversion fails
function Get-SQLDateValue {
param(
[System.Data.DataRow]$Row,
[string]$ColumnName
)

if (-not $Row.Table.Columns.Contains($ColumnName)) { return $null }
if ($null -eq $Row[$ColumnName]) { return $null }

$raw = $Row[$ColumnName].ToString().Trim()
if ([string]::IsNullOrWhiteSpace($raw)) { return $null }

while ($raw.StartsWith('"') -and $raw.EndsWith('"') -and $raw.Length -ge 2) {
$raw = $raw.Substring(1, $raw.Length - 2).Trim()
}

if ([string]::IsNullOrWhiteSpace($raw)) { return $null }

try {
return [datetime]::Parse($raw)
}
catch {
return $null
}
}

# Cleans a SQL user value by trimming spaces, removing surrounding quotes, and removing the trailing /Lialis part from Notes-style usernames
function Clean-SQLUserValue {
param(
[string]$Value
)

if ([string]::IsNullOrWhiteSpace($Value)) { return $null }

$CleanValue = $Value.Trim()

while ($CleanValue.StartsWith('"') -and $CleanValue.EndsWith('"') -and $CleanValue.Length -ge 2) {
$CleanValue = $CleanValue.Substring(1, $CleanValue.Length - 2).Trim()
}

if ($CleanValue -like "*/Lialis") {
$CleanValue = $CleanValue.Substring(0, $CleanValue.Length - 7).Trim()
}

if ([string]::IsNullOrWhiteSpace($CleanValue)) { return $null }

return $CleanValue
}

# Reads one SQL record by Notes universal id, saves the MIME content to disk, extracts text and attachments, and stores them in a folder named with the universal id
function Export-MimeSqlDocument {
param(
[string]$SQLUniversalId
)

Add-Type -Path $MimeKitDllPath

if ([string]::IsNullOrWhiteSpace($SQLUniversalId)) {
Write-Host "SQLUniversalId is empty"
return
}

if (!(Test-Path $MimeOutputRoot)) {
New-Item -ItemType Directory -Path $MimeOutputRoot | Out-Null
}

$Query = "SELECT universalid, ValidDocuments FROM [$SQLSchema].[$SQLTable] WHERE universalid = @universalid"

$conn = New-Object System.Data.SqlClient.SqlConnection
$conn.ConnectionString = "Server=$SQLServer;Database=$SQLDatabase;User ID=$SQLUsername;Password=$SQLPassword;Encrypt=True;TrustServerCertificate=False;Connection Timeout=30;"

try {
$conn.Open()

$cmd = $conn.CreateCommand()
$cmd.CommandText = $Query
$null = $cmd.Parameters.Add("@universalid", [System.Data.SqlDbType]::NChar, 32)
$cmd.Parameters["@universalid"].Value = $SQLUniversalId

$reader = $cmd.ExecuteReader()

if ($reader.Read()) {
$id = $reader["universalid"].ToString().Trim()
$desc = $reader["ValidDocuments"]

$folder = Join-Path $MimeOutputRoot $id
if (!(Test-Path $folder)) {
New-Item -ItemType Directory -Path $folder | Out-Null
}

$emlPath = Join-Path $folder "message.eml"
$textFile = Join-Path $folder "message.txt"
$imageFolder = Join-Path $folder "images"

if (!(Test-Path $imageFolder)) {
New-Item -ItemType Directory -Path $imageFolder | Out-Null
}

try {
[System.IO.File]::WriteAllText($emlPath, $desc)
Write-Host "EML opgeslagen: $emlPath"

$stream = [System.IO.File]::OpenRead($emlPath)
$email = [MimeKit.MimeMessage]::Load($stream)
$stream.Close()

$emailBody = $email.TextBody
$emailBody | Out-File $textFile -Encoding UTF8
Write-Host "Text content opgeslagen: $textFile"

foreach ($attachment in $email.Attachments) {
$fileName = $attachment.ContentDisposition?.FileName
if (-not $fileName) { $fileName = $attachment.ContentType.Name }
if (-not $fileName) { continue }

$attachmentPath = if ($fileName -match "\.jpg$|\.png$|\.gif$|\.jpeg$") {
Join-Path $imageFolder $fileName
}
else {
Join-Path $folder $fileName
}

$fileStream = [System.IO.File]::Create($attachmentPath)
$attachment.Content.DecodeTo($fileStream)
$fileStream.Close()

Write-Host "Attachment saved: $attachmentPath"
}
}
catch {
Write-Host ("Error processing {0}: {1}" -f $id, $_.Exception.Message)
}
}
else {
Write-Host "No SQL row found for universalid $SQLUniversalId"
}

$reader.Close()
}
finally {
if ($conn.State -eq [System.Data.ConnectionState]::Open) {
$conn.Close()
}
}
}

#SQL connection to retrieve the Notes documents ****************************************************
$SQLServer = "tcp:azuresqlserver.database.windows.net,1433"
$SQLDatabase = "shareflex_qms"
$SQLUsername = "sa username goes here"
$SQLPassword = "sa password goes here"
$SQLTable = "validdocument"
$SQLSchema = "dbo"
# SQL Mime settings ****************************************************
$MimeKitDllPath = "E:\mimekit\lib\netstandard2.0\MimeKit.dll"
$MimeOutputRoot = "E:\NotesSQLShareflex\SQLMIMIEXPORT\"

#Shareflex SharePoint connections and settings ****************************************************
#Valid Documents
$ShareflexValidDocs = "https://clienttenantname.sharepoint.com/sites/ShareflexQualityDocuments"
$SPODocLibRoot = "/sites/ShareflexQualityDocuments/Documents"
$SPOContentTypeName = "QM Document"
#Attachments Valid
$ShareflexWorkspaceSite = "https://clienttenantname.sharepoint.com/sites/ShareflexQualityDocuments/Workspace"
$SPOAttachmentLibRoot = "/sites/ShareflexQualityDocuments/Workspace/AttachmentsValid"
$SPOAttachmentContentTypeName = "QM Attachment"
#SharePoint Authentication
$clientId = "app id goes here"
$tenantid = "tenant id goes here"
$pfxpath = "E:\NotesSQLShareflex\appid001shareflexqmssql.pfx"
$certpassword = "app cer password goes here"

#Connect to the Shareflex Valid document library in Sharepoint ****************************************************
Write-Host "************* Connecting to SharePoint Online holding Shareflex QMS *************"
Write-log "************* Connecting to SharePoint Online holding Shareflex QMS *************"
Connect-PnPOnline `
-Url $ShareflexValidDocs `
-ClientId $clientId `
-CertificatePath $pfxpath `
-CertificatePassword (ConvertTo-SecureString -AsPlainText $certpassword -Force) `
-Tenant $tenantid `
-WarningAction Ignore

# ****************************************
# Read all SQL items, report metadata, then create Shareflex items using first docx from mime export
# ****************************************

$CarryOutSQLToShareflexTest = (Read-Host "Read all SQL rows and create Shareflex test items? (yes/no)").ToLower().Trim()
if ($CarryOutSQLToShareflexTest -eq "y") {

Write-Host "************* Reading SQL rows from $SQLSchema.$SQLTable *************"
Write-Log "************* Reading SQL rows from $SQLSchema.$SQLTable *************"

$SQLConnection = New-Object System.Data.SqlClient.SqlConnection
$SQLConnection.ConnectionString = "Server=$SQLServer;Database=$SQLDatabase;User ID=$SQLUsername;Password=$SQLPassword;Encrypt=True;TrustServerCertificate=False;Connection Timeout=30;"

try {
$SQLConnection.Open()

$SQLQuery = @"
SELECT *
FROM [$SQLSchema].[$SQLTable]
ORDER BY [_created] ASC
"@

$SQLCommand = $SQLConnection.CreateCommand()
$SQLCommand.CommandText = $SQLQuery

$SQLAdapter = New-Object System.Data.SqlClient.SqlDataAdapter $SQLCommand
$SQLDataTable = New-Object System.Data.DataTable
[void]$SQLAdapter.Fill($SQLDataTable)

if ($SQLDataTable.Rows.Count -eq 0) {
Write-Host "No SQL rows found in $SQLSchema.$SQLTable"
Write-Log "No SQL rows found in $SQLSchema.$SQLTable"
}
else {
Write-Host "Total SQL rows found: $($SQLDataTable.Rows.Count)"
Write-Log "Total SQL rows found: $($SQLDataTable.Rows.Count)"

$RowCounter = 0
foreach ($SQLRow in $SQLDataTable.Rows) {
$RowCounter++
#Document
$SQLDocTitle = Get-SQLStringValue -Row $SQLRow -ColumnName "doctitle"
$SQLDocNumber = Get-SQLStringValue -Row $SQLRow -ColumnName "docnumber"
$SQLDocType = Get-SQLStringValue -Row $SQLRow -ColumnName "doctype"
$SQLTemplateNo = Get-SQLStringValue -Row $SQLRow -ColumnName "doctemplatenumber"
$SQLTemplateTitle = Get-SQLStringValue -Row $SQLRow -ColumnName "doctemplatetitle"
$SQLEditor = Clean-SQLUserValue -Value (Get-SQLStringValue -Row $SQLRow -ColumnName "editor")
$SQLDocLanguage = Get-SQLStringValue -Row $SQLRow -ColumnName "doclanguage"
$SQLNotificationUsers = Clean-SQLUserValue -Value (Get-SQLStringValue -Row $SQLRow -ColumnName "docnotificationusers")
#Revision
$SQLRevisionNo = Get-SQLStringValue -Row $SQLRow -ColumnName "docrevisionnumber"
$SQLRevisionReason = Get-SQLStringValue -Row $SQLRow -ColumnName "docrevisionreason"
$SQLRevisionChange = Get-SQLStringValue -Row $SQLRow -ColumnName "docrevisionchange"
$SQLValidFrom = Get-SQLDateValue -Row $SQLRow -ColumnName "docvalidfrom"
$SQLValidUntil = Get-SQLDateValue -Row $SQLRow -ColumnName "docvaliduntil"
#Categories
$SQLClient = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategoryclient"
$SQLProcessGroup = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategoryprocessgroup"
$SQLDepartment = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategorydepartment"
$SQLProcess2 = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategoryprocess"
$SQLStandard = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategorystandard"
$SQLSubProcess = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategorysubprocess"
#Approval
$SQLReviewer = Clean-SQLUserValue -Value (Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalrevieweruser")
$SQLApprover = Clean-SQLUserValue -Value (Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalapprovaluser")
$SQLConfirmer = Clean-SQLUserValue -Value (Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalconfirmationuser")
$SQLReviewResult = Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalrevieweruserresult"
$SQLApprovalResult = Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalapprovaluserresult"
$SQLConfirmationResult = Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalconfirmationuserresul"
$SQLUniversalId = Get-SQLStringValue -Row $SQLRow -ColumnName "universalid"
$SQLCreated = Get-SQLDateValue -Row $SQLRow -ColumnName "_created"
$SQLModified = Get-SQLDateValue -Row $SQLRow -ColumnName "_modified"
$SQLUpdatedBy = Get-SQLStringValue -Row $SQLRow -ColumnName "_updatedby"
$SQLFilePath = Get-SQLStringValue -Row $SQLRow -ColumnName "_file"

Write-Host "--------------------------------------------------"
Write-Log "--------------------------------------------------"
Write-Host "SQL values prepared for Shareflex migration"
Write-Log "SQL values prepared for Shareflex migration"

#Document
Write-Host "Document"
Write-Log "Document"
Write-Host " SQLDocTitle = $SQLDocTitle"
Write-Log " SQLDocTitle = $SQLDocTitle"
Write-Host " SQLDocNumber = $SQLDocNumber"
Write-Log " SQLDocNumber = $SQLDocNumber"
Write-Host " SQLDocType = $SQLDocType"
Write-Log " SQLDocType = $SQLDocType"
Write-Host " SQLTemplateNo = $SQLTemplateNo"
Write-Log " SQLTemplateNo = $SQLTemplateNo"
Write-Host " SQLTemplateTitle = $SQLTemplateTitle"
Write-Log " SQLTemplateTitle = $SQLTemplateTitle"
Write-Host " SQLEditor = $SQLEditor"
Write-Log " SQLEditor = $SQLEditor"
Write-Host " SQLDocLanguage = $SQLDocLanguage"
Write-Log " SQLDocLanguage = $SQLDocLanguage"
Write-Host " SQLNotificationUsers = $SQLNotificationUsers"
Write-Log " SQLNotificationUsers = $SQLNotificationUsers"

#Revision
Write-Host "Revision"
Write-Log "Revision"
Write-Host " SQLRevisionNo = $SQLRevisionNo"
Write-Log " SQLRevisionNo = $SQLRevisionNo"
Write-Host " SQLRevisionReason = $SQLRevisionReason"
Write-Log " SQLRevisionReason = $SQLRevisionReason"
Write-Host " SQLRevisionChange = $SQLRevisionChange"
Write-Log " SQLRevisionChange = $SQLRevisionChange"
Write-Host " SQLValidFrom = $SQLValidFrom"
Write-Log " SQLValidFrom = $SQLValidFrom"
Write-Host " SQLValidUntil = $SQLValidUntil"
Write-Log " SQLValidUntil = $SQLValidUntil"

#Categories
Write-Host "Categories"
Write-Log "Categories"
Write-Host " SQLClient = $SQLClient"
Write-Log " SQLClient = $SQLClient"
Write-Host " SQLProcessGroup = $SQLProcessGroup"
Write-Log " SQLProcessGroup = $SQLProcessGroup"
Write-Host " SQLDepartment = $SQLDepartment"
Write-Log " SQLDepartment = $SQLDepartment"
Write-Host " SQLProcess2 = $SQLProcess2"
Write-Log " SQLProcess2 = $SQLProcess2"
Write-Host " SQLStandard = $SQLStandard"
Write-Log " SQLStandard = $SQLStandard"
Write-Host " SQLSubProcess = $SQLSubProcess"
Write-Log " SQLSubProcess = $SQLSubProcess"

#Approval
Write-Host "Approval"
Write-Log "Approval"
Write-Host " SQLReviewer = $SQLReviewer"
Write-Log " SQLReviewer = $SQLReviewer"
Write-Host " SQLApprover = $SQLApprover"
Write-Log " SQLApprover = $SQLApprover"
Write-Host " SQLConfirmer = $SQLConfirmer"
Write-Log " SQLConfirmer = $SQLConfirmer"
Write-Host " SQLReviewResult = $SQLReviewResult"
Write-Log " SQLReviewResult = $SQLReviewResult"
Write-Host " SQLApprovalResult = $SQLApprovalResult"
Write-Log " SQLApprovalResult = $SQLApprovalResult"
Write-Host " SQLConfirmationResult = $SQLConfirmationResult"
Write-Log " SQLConfirmationResult = $SQLConfirmationResult"

#System
Write-Host "System"
Write-Log "System"
Write-Host " SQLUniversalId = $SQLUniversalId"
Write-Log " SQLUniversalId = $SQLUniversalId"
Write-Host " SQLCreated = $SQLCreated"
Write-Log " SQLCreated = $SQLCreated"
Write-Host " SQLModified = $SQLModified"
Write-Log " SQLModified = $SQLModified"
Write-Host " SQLUpdatedBy = $SQLUpdatedBy"
Write-Log " SQLUpdatedBy = $SQLUpdatedBy"
Write-Host " SQLFilePath = $SQLFilePath"
Write-Log " SQLFilePath = $SQLFilePath"
Write-Host "--------------------------------------------------"
Write-Log "--------------------------------------------------"

if ([string]::IsNullOrWhiteSpace($SQLDocNumber)) {
$SQLDocNumber = "SQL-NO-NUMBER-$RowCounter"
}

if ([string]::IsNullOrWhiteSpace($SQLDocTitle)) {
$SQLDocTitle = $SQLDocNumber
}

if ([string]::IsNullOrWhiteSpace($SQLDocType)) {
$SQLDocType = "Document"
}

if ([string]::IsNullOrWhiteSpace($SQLRevisionNo)) {
$SQLRevisionNo = "1.0"
}

if ([string]::IsNullOrWhiteSpace($SQLClient)) {
$SQLClient = "Unknown"
}

if ([string]::IsNullOrWhiteSpace($SQLDepartment)) {
$SQLDepartment = "Unknown"
}

if ([string]::IsNullOrWhiteSpace($SQLStandard)) {
$SQLStandard = "Unknown"
}

if ($null -eq $SQLValidFrom) {
$SQLValidFrom = Get-Date
}

if ($null -eq $SQLModified) {
$SQLModified = Get-Date
}

if (-not [string]::IsNullOrWhiteSpace($SQLUniversalId)) {
Write-Host "Calling MIME export for SQLUniversalId $SQLUniversalId"
Write-Log "Calling MIME export for SQLUniversalId $SQLUniversalId"

Export-MimeSqlDocument -SQLUniversalId $SQLUniversalId
}
else {
Write-Host "Skipping MIME export because SQLUniversalId is empty"
Write-Log "Skipping MIME export because SQLUniversalId is empty"
}

$MimeFolder = Join-Path $MimeOutputRoot $SQLUniversalId

# ****************************************
# Upload all files from MIME folder to Attachments Valid
# except DOCX, because DOCX goes to Valid Documents
# ****************************************

$AttachmentFolderName = $SQLDocNumber
$SPOAttachmentFolderUrl = "$SPOAttachmentLibRoot/$AttachmentFolderName"

Write-Host "AttachmentFolderName = $AttachmentFolderName"
Write-Log "AttachmentFolderName = $AttachmentFolderName"
Write-Host "SPOAttachmentFolderUrl = $SPOAttachmentFolderUrl"
Write-Log "SPOAttachmentFolderUrl = $SPOAttachmentFolderUrl"

Connect-PnPOnline `
-Url $ShareflexWorkspaceSite `
-ClientId $clientId `
-CertificatePath $pfxpath `
-CertificatePassword (ConvertTo-SecureString -AsPlainText $certpassword -Force) `
-Tenant $tenantid `
-WarningAction Ignore

Write-Host "Connected to Workspace for attachment upload"
Write-Log "Connected to Workspace for attachment upload"

Write-Host "Checking attachment folder $SPOAttachmentFolderUrl"
Write-Log "Checking attachment folder $SPOAttachmentFolderUrl"

try {
$ExistingAttachmentFolder = Get-PnPFolder -Url $SPOAttachmentFolderUrl -ErrorAction Stop
Write-Host "Attachment folder already exists: $AttachmentFolderName"
Write-Log "Attachment folder already exists: $AttachmentFolderName"
}
catch {
Write-Host "Creating attachment folder: $AttachmentFolderName"
Write-Log "Creating attachment folder: $AttachmentFolderName"

Add-PnPFolder -Name $AttachmentFolderName -Folder $SPOAttachmentLibRoot -ErrorAction Stop | Out-Null

Write-Host "Attachment folder created OK: $AttachmentFolderName"
Write-Log "Attachment folder created OK: $AttachmentFolderName"
}

$AttachmentFiles = Get-ChildItem -Path $MimeFolder -File | Where-Object { $_.Extension.ToLower() -ne ".docx" }

if ($AttachmentFiles.Count -eq 0) {
Write-Host "No attachment files found in $MimeFolder to upload to Attachments Valid"
Write-Log "No attachment files found in $MimeFolder to upload to Attachments Valid"
}
else {
Write-Host "Found $($AttachmentFiles.Count) attachment file(s) in $MimeFolder for Attachments Valid upload"
Write-Log "Found $($AttachmentFiles.Count) attachment file(s) in $MimeFolder for Attachments Valid upload"

$SPOAttachmentLibrary = Get-PnPList -Identity $ShareflexAttachmentLibraryName -ErrorAction Stop
$SPOAttachmentContentTypes = Get-PnPProperty -ClientObject $SPOAttachmentLibrary -Property ContentTypes
$SPOAttachmentContentType = $SPOAttachmentContentTypes | Where-Object { $_.Name -eq $SPOAttachmentContentTypeName } | Select-Object -First 1

if ($null -eq $SPOAttachmentContentType) {
throw "Content type '$SPOAttachmentContentTypeName' not found on library '$ShareflexAttachmentLibraryName'."
}

$SPOAttachmentContentTypeId = $SPOAttachmentContentType.StringId

foreach ($AttachmentFile in $AttachmentFiles) {
$AttachmentFilePath = $AttachmentFile.FullName
$AttachmentFileName = $AttachmentFile.Name

Write-Host "Uploading attachment file $AttachmentFileName to $SPOAttachmentFolderUrl"
Write-Log "Uploading attachment file $AttachmentFileName to $SPOAttachmentFolderUrl"

$SPOAttachmentValues = @{
"ContentTypeId" = $SPOAttachmentContentTypeId
"qmRecordNo" = $SQLDocNumber
"qmRevisionNo" = $SQLRevisionNo
"qmStatus" = "Valid"
"qmStatusEn" = "Valid"
}

try {
$UploadedAttachmentFile = Add-PnPFile `
-Path $AttachmentFilePath `
-Folder $SPOAttachmentFolderUrl `
-Values $SPOAttachmentValues `
-ErrorAction Stop

Write-Host "Attachment uploaded OK: $AttachmentFileName"
Write-Log "Attachment uploaded OK: $AttachmentFileName"

$CreatedAttachmentItem = Get-PnPFile -Url $UploadedAttachmentFile.ServerRelativeUrl -AsListItem
Get-PnPProperty -ClientObject $CreatedAttachmentItem -Property ContentType | Out-Null

Write-Host "Attachment File: $($CreatedAttachmentItem['FileLeafRef'])"
Write-Log "Attachment File: $($CreatedAttachmentItem['FileLeafRef'])"
Write-Host "Attachment Content type: $($CreatedAttachmentItem.ContentType.Name)"
Write-Log "Attachment Content type: $($CreatedAttachmentItem.ContentType.Name)"
Write-Host "Attachment qmRecordNo: $($CreatedAttachmentItem['qmRecordNo'])"
Write-Log "Attachment qmRecordNo: $($CreatedAttachmentItem['qmRecordNo'])"
Write-Host "Attachment qmRevisionNo: $($CreatedAttachmentItem['qmRevisionNo'])"
Write-Log "Attachment qmRevisionNo: $($CreatedAttachmentItem['qmRevisionNo'])"
}
catch {
Write-Host "ERROR uploading attachment file $AttachmentFileName for row $RowCounter : $($_.Exception.Message)"
Write-Log "ERROR uploading attachment file $AttachmentFileName for row $RowCounter : $($_.Exception.Message)"
}
}
}

# ****************************************
# Upload docx file to valid documents library
# ****************************************

Write-Host "Looking for DOCX in $MimeFolder"
Write-Log "Looking for DOCX in $MimeFolder"

$DocxFile = Get-ChildItem -Path $MimeFolder -File -Filter "*.docx" | Select-Object -First 1

if ($null -eq $DocxFile) {
Write-Host "No DOCX file found in $MimeFolder"
Write-Log "No DOCX file found in $MimeFolder"
continue
}

$LocalTestFilePath = $DocxFile.FullName

Connect-PnPOnline `
-Url $ShareflexValidDocs `
-ClientId $clientId `
-CertificatePath $pfxpath `
-CertificatePassword (ConvertTo-SecureString -AsPlainText $certpassword -Force) `
-Tenant $tenantid `
-WarningAction Ignore

Write-Host "Using DOCX file for SharePoint upload: $LocalTestFilePath"
Write-Log "Using DOCX file for SharePoint upload: $LocalTestFilePath"

$FolderName = $SQLDocNumber
$SPOFolderUrl = "$SPODocLibRoot/$FolderName"

Write-Host "Checking folder $SPOFolderUrl"
Write-Log "Checking folder $SPOFolderUrl"

try {
$ExistingFolder = Get-PnPFolder -Url $SPOFolderUrl -ErrorAction Stop
Write-Host "Folder already exists: $FolderName"
Write-Log "Folder already exists: $FolderName"
}
catch {
Write-Host "Creating folder: $FolderName"
Write-Log "Creating folder: $FolderName"

Add-PnPFolder -Name $FolderName -Folder $SPODocLibRoot -ErrorAction Stop | Out-Null

Write-Host "Folder created OK: $FolderName"
Write-Log "Folder created OK: $FolderName"
}

Write-Host "Preparing content type $SPOContentTypeName"
Write-Log "Preparing content type $SPOContentTypeName"

$SPOContentType = Get-PnPContentType -Identity $SPOContentTypeName
$SPOContentType = Get-PnPProperty -ClientObject $SPOContentType -Property StringId
$SPOContentTypeId = $SPOContentType.StringId

$FileName = Split-Path $LocalTestFilePath -Leaf
$ServerRelativeFileUrl = "$SPOFolderUrl/$FileName"

$SPOValues = @{
"ContentTypeId" = $SPOContentTypeId

#Document
"Title" = $SQLDocTitle
"qmDocumentTitle" = $SQLDocTitle
"qmDocumentNo" = $SQLDocNumber
"qmDocumentType" = $SQLDocType
"qmTemplateNo" = $SQLTemplateNo
"qmTemplateTitle" = $SQLTemplateTitle
"qmEditor" = $SQLEditor
"qmDocumentLanguage" = $SQLDocLanguage
"qmNotificationList" = $SQLNotificationUsers

#Revision
"qmRevisionNo" = $SQLRevisionNo
"qmRevisionReason" = $SQLRevisionReason
"qmRevisionChange" = $SQLRevisionChange
"qmValidFrom" = $SQLValidFrom
"qmValidUntil" = $SQLValidUntil

#Categories
"qmClient" = $SQLClient
"qmProcess1" = $SQLProcessGroup
"qmDepartment" = $SQLDepartment
"qmProcess2" = $SQLProcess2
"qmStandard" = $SQLStandard
"qmProcess3" = $SQLSubProcess

#Approval
"qmReviewer" = $SQLReviewer
"qmApprover" = $SQLApprover
"qmConfirmer" = $SQLConfirmer
"qmReviewTxt" = $SQLReviewResult
"qmApprovalTxt" = $SQLApprovalResult
"qmConfirmationTxt" = $SQLConfirmationResult

#System / general
"qmRecordId" = $SQLUniversalId
"qmRecordNo" = $SQLDocNumber
"qmContentType" = "QM Document"
"qmStatus" = "Valid"
"qmStatusEn" = "Valid"
"qmDocumentUrl" = $ServerRelativeFileUrl
"qmComment" = "Test item created from SQL row $RowCounter"
"qmModified" = $SQLModified
"qmCheckedOut" = $false
"qmInTraining" = $false
"qmTrainingMandatory" = $false
"qmValidityDoNotUpdate" = $false
}

# remove null values from hashtable
$NullKeys = @()
foreach ($key in $SPOValues.Keys) {
if ($null -eq $SPOValues[$key]) {
$NullKeys += $key
}
}
foreach ($key in $NullKeys) {
$SPOValues.Remove($key)
}

Write-Host "Uploading $LocalTestFilePath to $SPOFolderUrl"
Write-Log "Uploading $LocalTestFilePath to $SPOFolderUrl"

try {
$UploadedFile = Add-PnPFile `
-Path $LocalTestFilePath `
-Folder $SPOFolderUrl `
-Values $SPOValues `
-ErrorAction Stop

Write-Host "Uploaded OK"
Write-Log "Uploaded OK"

$CreatedItem = Get-PnPFile -Url $UploadedFile.ServerRelativeUrl -AsListItem
Get-PnPProperty -ClientObject $CreatedItem -Property ContentType | Out-Null

Write-Host "--------------------------------------------------"
Write-Log "--------------------------------------------------"
Write-Host "Created Shareflex item from SQL row"
Write-Log "Created Shareflex item from SQL row"
Write-Host "File: $($CreatedItem['FileLeafRef'])"
Write-Log "File: $($CreatedItem['FileLeafRef'])"
Write-Host "Folder: $FolderName"
Write-Log "Folder: $FolderName"
Write-Host "Content type: $($CreatedItem.ContentType.Name)"
Write-Log "Content type: $($CreatedItem.ContentType.Name)"
Write-Host "Title: $($CreatedItem['Title'])"
Write-Log "Title: $($CreatedItem['Title'])"
Write-Host "qmDocumentTitle: $($CreatedItem['qmDocumentTitle'])"
Write-Log "qmDocumentTitle: $($CreatedItem['qmDocumentTitle'])"
Write-Host "qmDocumentNo: $($CreatedItem['qmDocumentNo'])"
Write-Log "qmDocumentNo: $($CreatedItem['qmDocumentNo'])"
Write-Host "qmDocumentType: $($CreatedItem['qmDocumentType'])"
Write-Log "qmDocumentType: $($CreatedItem['qmDocumentType'])"
Write-Host "qmClient: $($CreatedItem['qmClient'])"
Write-Log "qmClient: $($CreatedItem['qmClient'])"
Write-Host "qmDepartment: $($CreatedItem['qmDepartment'])"
Write-Log "qmDepartment: $($CreatedItem['qmDepartment'])"
Write-Host "qmStandard: $($CreatedItem['qmStandard'])"
Write-Log "qmStandard: $($CreatedItem['qmStandard'])"
Write-Host "qmRevisionNo: $($CreatedItem['qmRevisionNo'])"
Write-Log "qmRevisionNo: $($CreatedItem['qmRevisionNo'])"
Write-Host "qmDocumentUrl: $($CreatedItem['qmDocumentUrl'])"
Write-Log "qmDocumentUrl: $($CreatedItem['qmDocumentUrl'])"
}
catch {
Write-Host "ERROR creating Shareflex item for row $RowCounter : $($_.Exception.Message)"
Write-Log "ERROR creating Shareflex item for row $RowCounter : $($_.Exception.Message)"
}
}
}
}
catch {
Write-Host "ERROR during SQL to Shareflex test: $($_.Exception.Message)"
Write-Log "ERROR during SQL to Shareflex test: $($_.Exception.Message)"
}
finally {
if ($SQLConnection.State -eq [System.Data.ConnectionState]::Open) {
$SQLConnection.Close()
}
}
}
else {
Write-Host "SQL to Shareflex test skipped"
Write-Log "SQL to Shareflex test skipped"
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

643

644

645

646

647

648

649

650

651

652

653

654

655

656

657

658

659

660

661

662

663

664

665

666

667

668

669

670

671

672

673

674

675

676

677

678

679

680

681

682

683

684

685

686

687

688

689

690

691

692

693

694

695

696

697

698

699

700

701

702

703

704

705

706

707

708

709

710

711

712

713

714

715

716

717

718

719

720

721

722

723

724

725

726

727

728

#text file logging on users PC ****************************************************

$LogFolder = "E:\NotesSQLShareflex\Logs"

if (!(Test-Path $LogFolder)) {

New-Item -ItemType Directory -Path $LogFolder | Out-Null

}

$LogDateTime = Get-Date -Format "yyyy-MM-dd_HH-mm-ss"

$LogFile = Join-Path $LogFolder "sqltoshareflex_$LogDateTime.txt"

New-Item -ItemType File -Path $LogFile -Force | Out-Null

function Write-Log {

param(

[string]$Message

)

$LogLine = "$(Get-Date -Format 'yyyy-MM-dd HH:mm:ss') - $Message"

Add-Content -Path $LogFile -Value $LogLine

Write-Host $LogLine

}

# Gets a text value from a SQL row by column name, trims spaces, removes surrounding quotes, and returns $null when empty

function Get-SQLStringValue {

param(

[System.Data.DataRow]$Row,

[string]$ColumnName

)

if (-not $Row.Table.Columns.Contains($ColumnName)) { return $null }

if ($null -eq $Row[$ColumnName]) { return $null }

$v = $Row[$ColumnName].ToString().Trim()

if ([string]::IsNullOrWhiteSpace($v)) { return $null }

while ($v.StartsWith('"') -and $v.EndsWith('"') -and $v.Length -ge 2) {

$v = $v.Substring(1, $v.Length - 2).Trim()

}

if ([string]::IsNullOrWhiteSpace($v)) { return $null }

return $v

}

# Gets a date value from a SQL row by column name, trims spaces, removes surrounding quotes, converts it to datetime, and returns $null when conversion fails

function Get-SQLDateValue {

param(

[System.Data.DataRow]$Row,

[string]$ColumnName

)

if (-not $Row.Table.Columns.Contains($ColumnName)) { return $null }

if ($null -eq $Row[$ColumnName]) { return $null }

$raw = $Row[$ColumnName].ToString().Trim()

if ([string]::IsNullOrWhiteSpace($raw)) { return $null }

while ($raw.StartsWith('"') -and $raw.EndsWith('"') -and $raw.Length -ge 2) {

$raw = $raw.Substring(1, $raw.Length - 2).Trim()

}

if ([string]::IsNullOrWhiteSpace($raw)) { return $null }

try {

return [datetime]::Parse($raw)

}

catch {

return $null

}

# Cleans a SQL user value by trimming spaces, removing surrounding quotes, and removing the trailing /Lialis part from Notes-style usernames

function Clean-SQLUserValue {

param(

[string]$Value

)

if ([string]::IsNullOrWhiteSpace($Value)) { return $null }

$CleanValue = $Value.Trim()

while ($CleanValue.StartsWith('"') -and $CleanValue.EndsWith('"') -and $CleanValue.Length -ge 2) {

$CleanValue = $CleanValue.Substring(1, $CleanValue.Length - 2).Trim()

}

if ($CleanValue -like "*/Lialis") {

$CleanValue = $CleanValue.Substring(0, $CleanValue.Length - 7).Trim()

}

if ([string]::IsNullOrWhiteSpace($CleanValue)) { return $null }

return $CleanValue

}

# Reads one SQL record by Notes universal id, saves the MIME content to disk, extracts text and attachments, and stores them in a folder named with the universal id

function Export-MimeSqlDocument {

param(

[string]$SQLUniversalId

)

Add-Type -Path $MimeKitDllPath

if ([string]::IsNullOrWhiteSpace($SQLUniversalId)) {

Write-Host "SQLUniversalId is empty"

return

}

if (!(Test-Path $MimeOutputRoot)) {

New-Item -ItemType Directory -Path $MimeOutputRoot | Out-Null

}

$Query = "SELECT universalid, ValidDocuments FROM [$SQLSchema].[$SQLTable] WHERE universalid = @universalid"

$conn = New-Object System.Data.SqlClient.SqlConnection

$conn.ConnectionString = "Server=$SQLServer;Database=$SQLDatabase;User ID=$SQLUsername;Password=$SQLPassword;Encrypt=True;TrustServerCertificate=False;Connection Timeout=30;"

try {

$conn.Open()

$cmd = $conn.CreateCommand()

$cmd.CommandText = $Query

$null = $cmd.Parameters.Add("@universalid", [System.Data.SqlDbType]::NChar, 32)

$cmd.Parameters["@universalid"].Value = $SQLUniversalId

$reader = $cmd.ExecuteReader()

if ($reader.Read()) {

$id = $reader["universalid"].ToString().Trim()

$desc = $reader["ValidDocuments"]

$folder = Join-Path $MimeOutputRoot $id

if (!(Test-Path $folder)) {

New-Item -ItemType Directory -Path $folder | Out-Null

}

$emlPath = Join-Path $folder "message.eml"

$textFile = Join-Path $folder "message.txt"

$imageFolder = Join-Path $folder "images"

if (!(Test-Path $imageFolder)) {

New-Item -ItemType Directory -Path $imageFolder | Out-Null

}

try {

[System.IO.File]::WriteAllText($emlPath, $desc)

Write-Host "EML opgeslagen: $emlPath"

$stream = [System.IO.File]::OpenRead($emlPath)

$email = [MimeKit.MimeMessage]::Load($stream)

$stream.Close()

$emailBody = $email.TextBody

$emailBody | Out-File $textFile -Encoding UTF8

Write-Host "Text content opgeslagen: $textFile"

foreach ($attachment in $email.Attachments) {

$fileName = $attachment.ContentDisposition?.FileName

if (-not $fileName) { $fileName = $attachment.ContentType.Name }

if (-not $fileName) { continue }

$attachmentPath = if ($fileName -match "\.jpg$|\.png$|\.gif$|\.jpeg$") {

Join-Path $imageFolder $fileName

}

else {

Join-Path $folder $fileName

}

$fileStream = [System.IO.File]::Create($attachmentPath)

$attachment.Content.DecodeTo($fileStream)

$fileStream.Close()

Write-Host "Attachment saved: $attachmentPath"

}

catch {

Write-Host ("Error processing {0}: {1}" -f $id, $_.Exception.Message)

}

else {

Write-Host "No SQL row found for universalid $SQLUniversalId"

}

$reader.Close()

}

finally {

if ($conn.State -eq [System.Data.ConnectionState]::Open) {

$conn.Close()

}

#SQL connection to retrieve the Notes documents ****************************************************

$SQLServer = "tcp:azuresqlserver.database.windows.net,1433"

$SQLDatabase = "shareflex_qms"

$SQLUsername = "sa username goes here"

$SQLPassword = "sa password goes here"

$SQLTable = "validdocument"

$SQLSchema = "dbo"

# SQL Mime settings ****************************************************

$MimeKitDllPath = "E:\mimekit\lib\netstandard2.0\MimeKit.dll"

$MimeOutputRoot = "E:\NotesSQLShareflex\SQLMIMIEXPORT\"

#Shareflex SharePoint connections and settings ****************************************************

#Valid Documents

$ShareflexValidDocs = "https://clienttenantname.sharepoint.com/sites/ShareflexQualityDocuments"

$SPODocLibRoot = "/sites/ShareflexQualityDocuments/Documents"

$SPOContentTypeName = "QM Document"

#Attachments Valid

$ShareflexWorkspaceSite = "https://clienttenantname.sharepoint.com/sites/ShareflexQualityDocuments/Workspace"

$SPOAttachmentLibRoot = "/sites/ShareflexQualityDocuments/Workspace/AttachmentsValid"

$SPOAttachmentContentTypeName = "QM Attachment"

#SharePoint Authentication

$clientId = "app id goes here"

$tenantid = "tenant id goes here"

$pfxpath = "E:\NotesSQLShareflex\appid001shareflexqmssql.pfx"

$certpassword = "app cer password goes here"

#Connect to the Shareflex Valid document library in Sharepoint ****************************************************

Write-Host "************* Connecting to SharePoint Online holding Shareflex QMS *************"

Write-log "************* Connecting to SharePoint Online holding Shareflex QMS *************"

Connect-PnPOnline `

-Url $ShareflexValidDocs `

-ClientId $clientId `

-CertificatePath $pfxpath `

-CertificatePassword (ConvertTo-SecureString -AsPlainText $certpassword -Force) `

-Tenant $tenantid `

-WarningAction Ignore

# ****************************************

# Read all SQL items, report metadata, then create Shareflex items using first docx from mime export

# ****************************************

$CarryOutSQLToShareflexTest = (Read-Host "Read all SQL rows and create Shareflex test items? (yes/no)").ToLower().Trim()

if ($CarryOutSQLToShareflexTest -eq "y") {

Write-Host "************* Reading SQL rows from $SQLSchema.$SQLTable *************"

Write-Log "************* Reading SQL rows from $SQLSchema.$SQLTable *************"

$SQLConnection = New-Object System.Data.SqlClient.SqlConnection

$SQLConnection.ConnectionString = "Server=$SQLServer;Database=$SQLDatabase;User ID=$SQLUsername;Password=$SQLPassword;Encrypt=True;TrustServerCertificate=False;Connection Timeout=30;"

try {

$SQLConnection.Open()

$SQLQuery = @"

SELECT *

FROM [$SQLSchema].[$SQLTable]

ORDER BY [_created] ASC

$SQLCommand = $SQLConnection.CreateCommand()

$SQLCommand.CommandText = $SQLQuery

$SQLAdapter = New-Object System.Data.SqlClient.SqlDataAdapter $SQLCommand

$SQLDataTable = New-Object System.Data.DataTable

[void]$SQLAdapter.Fill($SQLDataTable)

if ($SQLDataTable.Rows.Count -eq 0) {

Write-Host "No SQL rows found in $SQLSchema.$SQLTable"

Write-Log "No SQL rows found in $SQLSchema.$SQLTable"

}

else {

Write-Host "Total SQL rows found: $($SQLDataTable.Rows.Count)"

Write-Log "Total SQL rows found: $($SQLDataTable.Rows.Count)"

$RowCounter = 0

foreach ($SQLRow in $SQLDataTable.Rows) {

$RowCounter++

#Document

$SQLDocTitle = Get-SQLStringValue -Row $SQLRow -ColumnName "doctitle"

$SQLDocNumber = Get-SQLStringValue -Row $SQLRow -ColumnName "docnumber"

$SQLDocType = Get-SQLStringValue -Row $SQLRow -ColumnName "doctype"

$SQLTemplateNo = Get-SQLStringValue -Row $SQLRow -ColumnName "doctemplatenumber"

$SQLTemplateTitle = Get-SQLStringValue -Row $SQLRow -ColumnName "doctemplatetitle"

$SQLEditor = Clean-SQLUserValue -Value (Get-SQLStringValue -Row $SQLRow -ColumnName "editor")

$SQLDocLanguage = Get-SQLStringValue -Row $SQLRow -ColumnName "doclanguage"

$SQLNotificationUsers = Clean-SQLUserValue -Value (Get-SQLStringValue -Row $SQLRow -ColumnName "docnotificationusers")

#Revision

$SQLRevisionNo = Get-SQLStringValue -Row $SQLRow -ColumnName "docrevisionnumber"

$SQLRevisionReason = Get-SQLStringValue -Row $SQLRow -ColumnName "docrevisionreason"

$SQLRevisionChange = Get-SQLStringValue -Row $SQLRow -ColumnName "docrevisionchange"

$SQLValidFrom = Get-SQLDateValue -Row $SQLRow -ColumnName "docvalidfrom"

$SQLValidUntil = Get-SQLDateValue -Row $SQLRow -ColumnName "docvaliduntil"

#Categories

$SQLClient = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategoryclient"

$SQLProcessGroup = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategoryprocessgroup"

$SQLDepartment = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategorydepartment"

$SQLProcess2 = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategoryprocess"

$SQLStandard = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategorystandard"

$SQLSubProcess = Get-SQLStringValue -Row $SQLRow -ColumnName "doccategorysubprocess"

#Approval

$SQLReviewer = Clean-SQLUserValue -Value (Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalrevieweruser")

$SQLApprover = Clean-SQLUserValue -Value (Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalapprovaluser")

$SQLConfirmer = Clean-SQLUserValue -Value (Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalconfirmationuser")

$SQLReviewResult = Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalrevieweruserresult"

$SQLApprovalResult = Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalapprovaluserresult"

$SQLConfirmationResult = Get-SQLStringValue -Row $SQLRow -ColumnName "docapprovalconfirmationuserresul"

$SQLUniversalId = Get-SQLStringValue -Row $SQLRow -ColumnName "universalid"

$SQLCreated = Get-SQLDateValue -Row $SQLRow -ColumnName "_created"

$SQLModified = Get-SQLDateValue -Row $SQLRow -ColumnName "_modified"

$SQLUpdatedBy = Get-SQLStringValue -Row $SQLRow -ColumnName "_updatedby"

$SQLFilePath = Get-SQLStringValue -Row $SQLRow -ColumnName "_file"

Write-Host "--------------------------------------------------"

Write-Log "--------------------------------------------------"

Write-Host "SQL values prepared for Shareflex migration"

Write-Log "SQL values prepared for Shareflex migration"

#Document

Write-Host "Document"

Write-Log "Document"

Write-Host " SQLDocTitle = $SQLDocTitle"

Write-Log " SQLDocTitle = $SQLDocTitle"

Write-Host " SQLDocNumber = $SQLDocNumber"

Write-Log " SQLDocNumber = $SQLDocNumber"

Write-Host " SQLDocType = $SQLDocType"

Write-Log " SQLDocType = $SQLDocType"

Write-Host " SQLTemplateNo = $SQLTemplateNo"

Write-Log " SQLTemplateNo = $SQLTemplateNo"

Write-Host " SQLTemplateTitle = $SQLTemplateTitle"

Write-Log " SQLTemplateTitle = $SQLTemplateTitle"

Write-Host " SQLEditor = $SQLEditor"

Write-Log " SQLEditor = $SQLEditor"

Write-Host " SQLDocLanguage = $SQLDocLanguage"

Write-Log " SQLDocLanguage = $SQLDocLanguage"

Write-Host " SQLNotificationUsers = $SQLNotificationUsers"

Write-Log " SQLNotificationUsers = $SQLNotificationUsers"

#Revision

Write-Host "Revision"

Write-Log "Revision"

Write-Host " SQLRevisionNo = $SQLRevisionNo"

Write-Log " SQLRevisionNo = $SQLRevisionNo"

Write-Host " SQLRevisionReason = $SQLRevisionReason"

Write-Log " SQLRevisionReason = $SQLRevisionReason"

Write-Host " SQLRevisionChange = $SQLRevisionChange"

Write-Log " SQLRevisionChange = $SQLRevisionChange"

Write-Host " SQLValidFrom = $SQLValidFrom"

Write-Log " SQLValidFrom = $SQLValidFrom"

Write-Host " SQLValidUntil = $SQLValidUntil"

Write-Log " SQLValidUntil = $SQLValidUntil"

#Categories

Write-Host "Categories"

Write-Log "Categories"

Write-Host " SQLClient = $SQLClient"

Write-Log " SQLClient = $SQLClient"

Write-Host " SQLProcessGroup = $SQLProcessGroup"

Write-Log " SQLProcessGroup = $SQLProcessGroup"

Write-Host " SQLDepartment = $SQLDepartment"

Write-Log " SQLDepartment = $SQLDepartment"

Write-Host " SQLProcess2 = $SQLProcess2"

Write-Log " SQLProcess2 = $SQLProcess2"

Write-Host " SQLStandard = $SQLStandard"

Write-Log " SQLStandard = $SQLStandard"

Write-Host " SQLSubProcess = $SQLSubProcess"

Write-Log " SQLSubProcess = $SQLSubProcess"

#Approval

Write-Host "Approval"

Write-Log "Approval"

Write-Host " SQLReviewer = $SQLReviewer"

Write-Log " SQLReviewer = $SQLReviewer"

Write-Host " SQLApprover = $SQLApprover"

Write-Log " SQLApprover = $SQLApprover"

Write-Host " SQLConfirmer = $SQLConfirmer"

Write-Log " SQLConfirmer = $SQLConfirmer"

Write-Host " SQLReviewResult = $SQLReviewResult"

Write-Log " SQLReviewResult = $SQLReviewResult"

Write-Host " SQLApprovalResult = $SQLApprovalResult"

Write-Log " SQLApprovalResult = $SQLApprovalResult"

Write-Host " SQLConfirmationResult = $SQLConfirmationResult"

Write-Log " SQLConfirmationResult = $SQLConfirmationResult"

#System

Write-Host "System"

Write-Log "System"

Write-Host " SQLUniversalId = $SQLUniversalId"

Write-Log " SQLUniversalId = $SQLUniversalId"

Write-Host " SQLCreated = $SQLCreated"

Write-Log " SQLCreated = $SQLCreated"

Write-Host " SQLModified = $SQLModified"

Write-Log " SQLModified = $SQLModified"

Write-Host " SQLUpdatedBy = $SQLUpdatedBy"

Write-Log " SQLUpdatedBy = $SQLUpdatedBy"

Write-Host " SQLFilePath = $SQLFilePath"

Write-Log " SQLFilePath = $SQLFilePath"

Write-Host "--------------------------------------------------"

Write-Log "--------------------------------------------------"

if ([string]::IsNullOrWhiteSpace($SQLDocNumber)) {

$SQLDocNumber = "SQL-NO-NUMBER-$RowCounter"

}

if ([string]::IsNullOrWhiteSpace($SQLDocTitle)) {

$SQLDocTitle = $SQLDocNumber

}

if ([string]::IsNullOrWhiteSpace($SQLDocType)) {

$SQLDocType = "Document"

}

if ([string]::IsNullOrWhiteSpace($SQLRevisionNo)) {

$SQLRevisionNo = "1.0"

}

if ([string]::IsNullOrWhiteSpace($SQLClient)) {

$SQLClient = "Unknown"

}

if ([string]::IsNullOrWhiteSpace($SQLDepartment)) {

$SQLDepartment = "Unknown"

}

if ([string]::IsNullOrWhiteSpace($SQLStandard)) {

$SQLStandard = "Unknown"

}

if ($null -eq $SQLValidFrom) {

$SQLValidFrom = Get-Date

}

if ($null -eq $SQLModified) {

$SQLModified = Get-Date

}

if (-not [string]::IsNullOrWhiteSpace($SQLUniversalId)) {

Write-Host "Calling MIME export for SQLUniversalId $SQLUniversalId"

Write-Log "Calling MIME export for SQLUniversalId $SQLUniversalId"

Export-MimeSqlDocument -SQLUniversalId $SQLUniversalId

}

else {

Write-Host "Skipping MIME export because SQLUniversalId is empty"

Write-Log "Skipping MIME export because SQLUniversalId is empty"

}

$MimeFolder = Join-Path $MimeOutputRoot $SQLUniversalId

# ****************************************

# Upload all files from MIME folder to Attachments Valid

# except DOCX, because DOCX goes to Valid Documents

# ****************************************

$AttachmentFolderName = $SQLDocNumber

$SPOAttachmentFolderUrl = "$SPOAttachmentLibRoot/$AttachmentFolderName"

Write-Host "AttachmentFolderName = $AttachmentFolderName"

Write-Log "AttachmentFolderName = $AttachmentFolderName"

Write-Host "SPOAttachmentFolderUrl = $SPOAttachmentFolderUrl"

Write-Log "SPOAttachmentFolderUrl = $SPOAttachmentFolderUrl"

Connect-PnPOnline `

-Url $ShareflexWorkspaceSite `

-ClientId $clientId `

-CertificatePath $pfxpath `

-CertificatePassword (ConvertTo-SecureString -AsPlainText $certpassword -Force) `

-Tenant $tenantid `

-WarningAction Ignore

Write-Host "Connected to Workspace for attachment upload"

Write-Log "Connected to Workspace for attachment upload"

Write-Host "Checking attachment folder $SPOAttachmentFolderUrl"

Write-Log "Checking attachment folder $SPOAttachmentFolderUrl"

try {

$ExistingAttachmentFolder = Get-PnPFolder -Url $SPOAttachmentFolderUrl -ErrorAction Stop

Write-Host "Attachment folder already exists: $AttachmentFolderName"

Write-Log "Attachment folder already exists: $AttachmentFolderName"

}

catch {

Write-Host "Creating attachment folder: $AttachmentFolderName"

Write-Log "Creating attachment folder: $AttachmentFolderName"

Add-PnPFolder -Name $AttachmentFolderName -Folder $SPOAttachmentLibRoot -ErrorAction Stop | Out-Null

Write-Host "Attachment folder created OK: $AttachmentFolderName"

Write-Log "Attachment folder created OK: $AttachmentFolderName"

}

$AttachmentFiles = Get-ChildItem -Path $MimeFolder -File | Where-Object { $_.Extension.ToLower() -ne ".docx" }

if ($AttachmentFiles.Count -eq 0) {

Write-Host "No attachment files found in $MimeFolder to upload to Attachments Valid"

Write-Log "No attachment files found in $MimeFolder to upload to Attachments Valid"

}

else {

Write-Host "Found $($AttachmentFiles.Count) attachment file(s) in $MimeFolder for Attachments Valid upload"

Write-Log "Found $($AttachmentFiles.Count) attachment file(s) in $MimeFolder for Attachments Valid upload"

$SPOAttachmentLibrary = Get-PnPList -Identity $ShareflexAttachmentLibraryName -ErrorAction Stop

$SPOAttachmentContentTypes = Get-PnPProperty -ClientObject $SPOAttachmentLibrary -Property ContentTypes

$SPOAttachmentContentType = $SPOAttachmentContentTypes | Where-Object { $_.Name -eq $SPOAttachmentContentTypeName } | Select-Object -First 1

if ($null -eq $SPOAttachmentContentType) {

throw "Content type '$SPOAttachmentContentTypeName' not found on library '$ShareflexAttachmentLibraryName'."

}

$SPOAttachmentContentTypeId = $SPOAttachmentContentType.StringId

foreach ($AttachmentFile in $AttachmentFiles) {

$AttachmentFilePath = $AttachmentFile.FullName

$AttachmentFileName = $AttachmentFile.Name

Write-Host "Uploading attachment file $AttachmentFileName to $SPOAttachmentFolderUrl"

Write-Log "Uploading attachment file $AttachmentFileName to $SPOAttachmentFolderUrl"

$SPOAttachmentValues = @{

"ContentTypeId" = $SPOAttachmentContentTypeId

"qmRecordNo" = $SQLDocNumber

"qmRevisionNo" = $SQLRevisionNo

"qmStatus" = "Valid"

"qmStatusEn" = "Valid"

}

try {

$UploadedAttachmentFile = Add-PnPFile `

-Path $AttachmentFilePath `

-Folder $SPOAttachmentFolderUrl `

-Values $SPOAttachmentValues `

-ErrorAction Stop

Write-Host "Attachment uploaded OK: $AttachmentFileName"

Write-Log "Attachment uploaded OK: $AttachmentFileName"

$CreatedAttachmentItem = Get-PnPFile -Url $UploadedAttachmentFile.ServerRelativeUrl -AsListItem

Get-PnPProperty -ClientObject $CreatedAttachmentItem -Property ContentType | Out-Null

Write-Host "Attachment File: $($CreatedAttachmentItem['FileLeafRef'])"

Write-Log "Attachment File: $($CreatedAttachmentItem['FileLeafRef'])"

Write-Host "Attachment Content type: $($CreatedAttachmentItem.ContentType.Name)"

Write-Log "Attachment Content type: $($CreatedAttachmentItem.ContentType.Name)"

Write-Host "Attachment qmRecordNo: $($CreatedAttachmentItem['qmRecordNo'])"

Write-Log "Attachment qmRecordNo: $($CreatedAttachmentItem['qmRecordNo'])"

Write-Host "Attachment qmRevisionNo: $($CreatedAttachmentItem['qmRevisionNo'])"

Write-Log "Attachment qmRevisionNo: $($CreatedAttachmentItem['qmRevisionNo'])"

}

catch {

Write-Host "ERROR uploading attachment file $AttachmentFileName for row $RowCounter : $($_.Exception.Message)"

Write-Log "ERROR uploading attachment file $AttachmentFileName for row $RowCounter : $($_.Exception.Message)"

}

# ****************************************

# Upload docx file to valid documents library

# ****************************************

Write-Host "Looking for DOCX in $MimeFolder"

Write-Log "Looking for DOCX in $MimeFolder"

$DocxFile = Get-ChildItem -Path $MimeFolder -File -Filter "*.docx" | Select-Object -First 1

if ($null -eq $DocxFile) {

Write-Host "No DOCX file found in $MimeFolder"

Write-Log "No DOCX file found in $MimeFolder"

continue

}

$LocalTestFilePath = $DocxFile.FullName

Connect-PnPOnline `

-Url $ShareflexValidDocs `

-ClientId $clientId `

-CertificatePath $pfxpath `

-CertificatePassword (ConvertTo-SecureString -AsPlainText $certpassword -Force) `

-Tenant $tenantid `

-WarningAction Ignore

Write-Host "Using DOCX file for SharePoint upload: $LocalTestFilePath"

Write-Log "Using DOCX file for SharePoint upload: $LocalTestFilePath"

$FolderName = $SQLDocNumber

$SPOFolderUrl = "$SPODocLibRoot/$FolderName"

Write-Host "Checking folder $SPOFolderUrl"

Write-Log "Checking folder $SPOFolderUrl"

try {

$ExistingFolder = Get-PnPFolder -Url $SPOFolderUrl -ErrorAction Stop

Write-Host "Folder already exists: $FolderName"

Write-Log "Folder already exists: $FolderName"

}

catch {

Write-Host "Creating folder: $FolderName"

Write-Log "Creating folder: $FolderName"

Add-PnPFolder -Name $FolderName -Folder $SPODocLibRoot -ErrorAction Stop | Out-Null

Write-Host "Folder created OK: $FolderName"

Write-Log "Folder created OK: $FolderName"

}

Write-Host "Preparing content type $SPOContentTypeName"

Write-Log "Preparing content type $SPOContentTypeName"

$SPOContentType = Get-PnPContentType -Identity $SPOContentTypeName

$SPOContentType = Get-PnPProperty -ClientObject $SPOContentType -Property StringId

$SPOContentTypeId = $SPOContentType.StringId

$FileName = Split-Path $LocalTestFilePath -Leaf

$ServerRelativeFileUrl = "$SPOFolderUrl/$FileName"

$SPOValues = @{

"ContentTypeId" = $SPOContentTypeId

#Document

"Title" = $SQLDocTitle

"qmDocumentTitle" = $SQLDocTitle

"qmDocumentNo" = $SQLDocNumber

"qmDocumentType" = $SQLDocType

"qmTemplateNo" = $SQLTemplateNo

"qmTemplateTitle" = $SQLTemplateTitle

"qmEditor" = $SQLEditor

"qmDocumentLanguage" = $SQLDocLanguage

"qmNotificationList" = $SQLNotificationUsers

#Revision

"qmRevisionNo" = $SQLRevisionNo

"qmRevisionReason" = $SQLRevisionReason

"qmRevisionChange" = $SQLRevisionChange

"qmValidFrom" = $SQLValidFrom

"qmValidUntil" = $SQLValidUntil

#Categories

"qmClient" = $SQLClient

"qmProcess1" = $SQLProcessGroup

"qmDepartment" = $SQLDepartment

"qmProcess2" = $SQLProcess2

"qmStandard" = $SQLStandard

"qmProcess3" = $SQLSubProcess

#Approval

"qmReviewer" = $SQLReviewer

"qmApprover" = $SQLApprover

"qmConfirmer" = $SQLConfirmer

"qmReviewTxt" = $SQLReviewResult

"qmApprovalTxt" = $SQLApprovalResult

"qmConfirmationTxt" = $SQLConfirmationResult

#System / general

"qmRecordId" = $SQLUniversalId

"qmRecordNo" = $SQLDocNumber

"qmContentType" = "QM Document"

"qmStatus" = "Valid"

"qmStatusEn" = "Valid"

"qmDocumentUrl" = $ServerRelativeFileUrl

"qmComment" = "Test item created from SQL row $RowCounter"

"qmModified" = $SQLModified

"qmCheckedOut" = $false

"qmInTraining" = $false

"qmTrainingMandatory" = $false

"qmValidityDoNotUpdate" = $false

}

# remove null values from hashtable

$NullKeys = @()

foreach ($key in $SPOValues.Keys) {

if ($null -eq $SPOValues[$key]) {

$NullKeys += $key

}

foreach ($key in $NullKeys) {

$SPOValues.Remove($key)

}

Write-Host "Uploading $LocalTestFilePath to $SPOFolderUrl"

Write-Log "Uploading $LocalTestFilePath to $SPOFolderUrl"

try {

$UploadedFile = Add-PnPFile `

-Path $LocalTestFilePath `

-Folder $SPOFolderUrl `

-Values $SPOValues `

-ErrorAction Stop

Write-Host "Uploaded OK"

Write-Log "Uploaded OK"

$CreatedItem = Get-PnPFile -Url $UploadedFile.ServerRelativeUrl -AsListItem

Get-PnPProperty -ClientObject $CreatedItem -Property ContentType | Out-Null

Write-Host "--------------------------------------------------"

Write-Log "--------------------------------------------------"

Write-Host "Created Shareflex item from SQL row"

Write-Log "Created Shareflex item from SQL row"

Write-Host "File: $($CreatedItem['FileLeafRef'])"

Write-Log "File: $($CreatedItem['FileLeafRef'])"

Write-Host "Folder: $FolderName"

Write-Log "Folder: $FolderName"

Write-Host "Content type: $($CreatedItem.ContentType.Name)"

Write-Log "Content type: $($CreatedItem.ContentType.Name)"

Write-Host "Title: $($CreatedItem['Title'])"

Write-Log "Title: $($CreatedItem['Title'])"

Write-Host "qmDocumentTitle: $($CreatedItem['qmDocumentTitle'])"

Write-Log "qmDocumentTitle: $($CreatedItem['qmDocumentTitle'])"

Write-Host "qmDocumentNo: $($CreatedItem['qmDocumentNo'])"

Write-Log "qmDocumentNo: $($CreatedItem['qmDocumentNo'])"

Write-Host "qmDocumentType: $($CreatedItem['qmDocumentType'])"

Write-Log "qmDocumentType: $($CreatedItem['qmDocumentType'])"

Write-Host "qmClient: $($CreatedItem['qmClient'])"

Write-Log "qmClient: $($CreatedItem['qmClient'])"

Write-Host "qmDepartment: $($CreatedItem['qmDepartment'])"

Write-Log "qmDepartment: $($CreatedItem['qmDepartment'])"

Write-Host "qmStandard: $($CreatedItem['qmStandard'])"

Write-Log "qmStandard: $($CreatedItem['qmStandard'])"

Write-Host "qmRevisionNo: $($CreatedItem['qmRevisionNo'])"

Write-Log "qmRevisionNo: $($CreatedItem['qmRevisionNo'])"

Write-Host "qmDocumentUrl: $($CreatedItem['qmDocumentUrl'])"

Write-Log "qmDocumentUrl: $($CreatedItem['qmDocumentUrl'])"

}

catch {

Write-Host "ERROR creating Shareflex item for row $RowCounter : $($_.Exception.Message)"

Write-Log "ERROR creating Shareflex item for row $RowCounter : $($_.Exception.Message)"

}

catch {

Write-Host "ERROR during SQL to Shareflex test: $($_.Exception.Message)"

Write-Log "ERROR during SQL to Shareflex test: $($_.Exception.Message)"

}

finally {

if ($SQLConnection.State -eq [System.Data.ConnectionState]::Open) {

$SQLConnection.Close()

}

else {

Write-Host "SQL to Shareflex test skipped"

Write-Log "SQL to Shareflex test skipped"

}

Conclusion

Migrating from Lotus Notes to Shareflex QMS does not have to be overly complex. By first moving the Notes database to SQL with Lialis LNExtract, including daily delta updates, a stable foundation is created. From there, PnP PowerShell can be used to load the documents and attachments into Shareflex QMS with the right metadata and structure. This approach combines the safety of a lift-and-shift extraction with the flexibility to reshape the content for a modern SharePoint-based quality management solution.

Migrating a Lotus Notes Database to Shareflex QMS via SQL and PNP PowerShell

Lotus Notes to Shareflex QMS, via SQL using PNP Powershell

Lift and shift the IBM Notes content to SQL

Transform SQL content into Shareflex QMS documents

Azure AD application

PnP PowerShell script we used

Conclusion

or email us

Lotus Notes to Shareflex QMS, via SQL using PNP Powershell

Lift and shift the IBM Notes content to SQL

Transform SQL content into Shareflex QMS documents

Azure AD application

PnP PowerShell script we used

Conclusion

You Might Also Like

Notes 2 SQL – LNExtract Admin Manual

Let’s meet!

or email us
